Condensate recovery systems

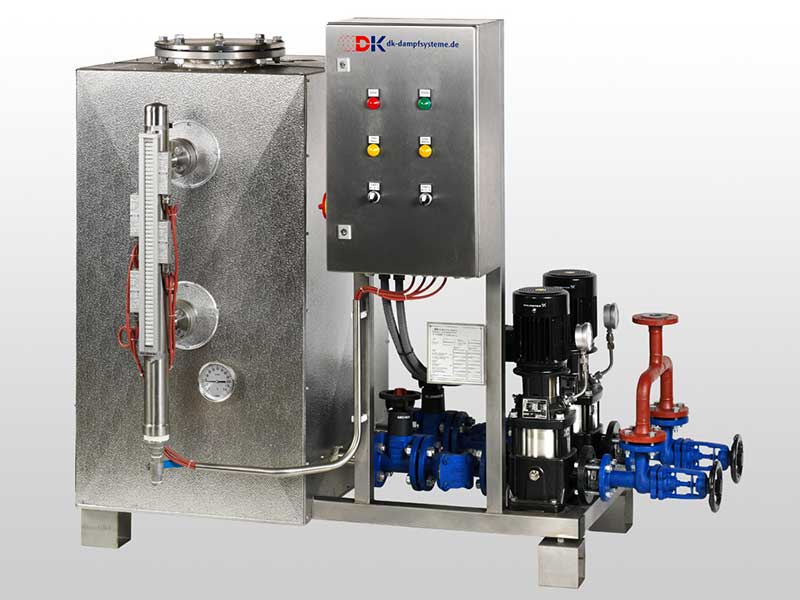

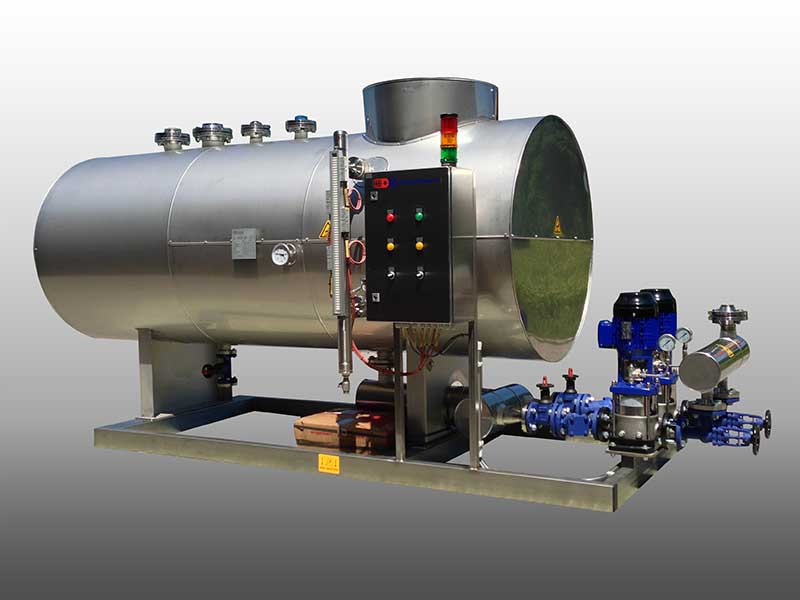

DK condensate recovery facility (RSA) is designed to collect condensate with different oxygen levels. The collected condensate is returned by a pump system into the feed water tank in the boiler house.

Basic equipment:

• Collection tank made of steel or stainless steel will all necessary connection points for operation
• Low pressure or high pressure vessel design
• Cylindrical or rectangular shape
• All necessary nozzle fittings (ARI, A+R, SpiraxSarco) adapted to the nozzle design
• Twin pump unit "Grundfos CR" (pumps from other manufacturers are available upon request) including the necessary fittings (ARI, SpiraxSarco) and components (ARI, GESTRA) as well as pressure gauges (WIKA)
• Levelling device in stainless steel with bypass tube (KSR), magnetic level indicator (KSR) and magnetic float (KSR) as well as 4 point level switch (KSR)
• Undercoated and lacquered base frame made of galvanized or stainless steel
• Insulation of the tank with stone wool (100 mm) and stucco embossed aluminium jacketing; optionally made of galvanized or stainless steel
• Insulation of the pipes with stone wool (according to the "EnEV" energy saving rules) and stucco embossed aluminium jacketing; optionally made of galvanized or stainless steel
• Electro-coated instrument panel made of steel with all necessary components, such as fuses, clamps, relays, switches, indicator lights (Siemens, Moeller), etc; optionally made of stainless steel or equipped with PLC control system and touch screen for easy start-up and operation

We provide turn-key installation. The plant will be set up on a base frame and completely wired.
